| Front | Back |
 What is the minimum clear floor or ground space required by the ADA? |
30" x 48"
|
|
True or False:
Unless othewise specified, clear floor or ground space shall be permitted to include knee and toe clearance. |
True
|
|
Turning space can be either a _______________ or a ______________.
|
Circle, T
|
|
A circular turning space shall be a space of __________ diameter minimum.
|
60"
|
|
True or False:
The circular turning space shall be permitted to include knee and toe clearance. |
True
|
|

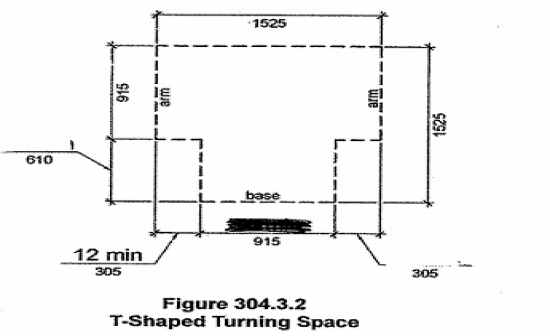

The T-Shaped space is __________ square
|
60"
|
 In a T-Shaped turning space the arms and base of the T are __________ wide. |
36"
|
|
In a T-Shaped turning space each arm of the T shall be clear of obstructions __________ minimum in each direction.
|
12"
|
|
In a T-Shaped turning space the base of the T shall be clear of obstructions __________ minimum.
|
24"
|
|
True or False:
Doors are not permitted to swing into a turning space. |
False
|
|
Unless otherwised specified, clear or ground space shall be positioned for either _________________ or ______________ approach to an element.
|
Forward, Parallel
|

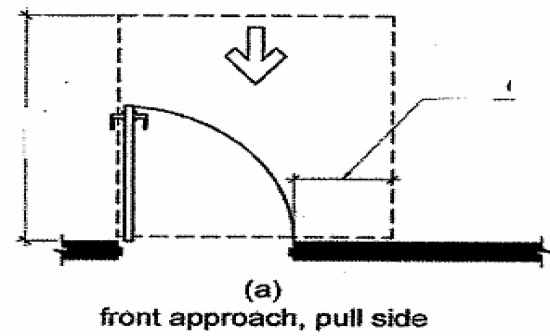

 What is the minimum maneuvering clearance for a front approach, pull side door? |
18" beyond the the latch side.
|

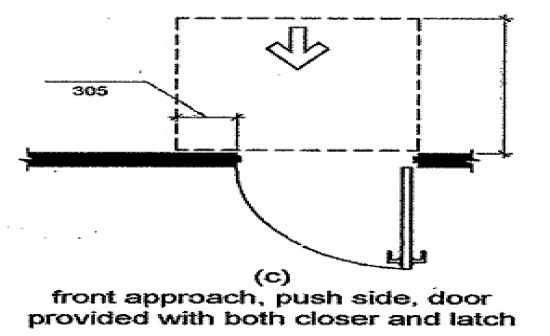

 What is the minimum maneuvering clearance for a front approach, push side door with a closer and latch? |
12" beyond latch side.
|
|
What is the minimum distance between two hinged or pivoted doors in a series?
|
48" plus the width of the door.
|
|
True or False:
The landing clear width shall be at least 12" wider than the widest ramp run leading to the landing. |
False. The landing clear width shall be at least twice as wide as the widest ramp run leading to the landing
|
