Front | Back |
What is it |
LF, Frontal Lobe.
LT, Temporal Lobe.
LP, Parietal Lobe.
|
What is it |
LF, Frontal Lobe.
1, Sylvian fissure.
2, Superior temporal gyrus.
3, Middle temporal gyrus.
4, Inferior temporal gyrus.
|
What is it |
1, Sylvian fissure.
2, Globe.
3, Superior temporal gyrus.
4, Middle temporal gyrus.
5, Inferior temporal gyrus.
LF, Frontal Lobe.
LP, Parietal Lobe.
|
What is it |
1, Globe.
2, Right maxillary sinus.
3, Cerebellar hemisphere.
4, Transverse sinus.
LF, Frontal Lobe.
LT, Temporal Lobe.
|

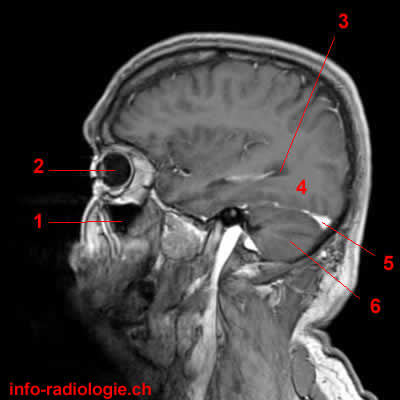

What is it |
1, Right maxillary sinus.
2, Globe.
3, Lateral ventricle.
4, Occipito-temporal gyri.
5, Transverse sinus.
6, Cerebellar hemisphere.
|

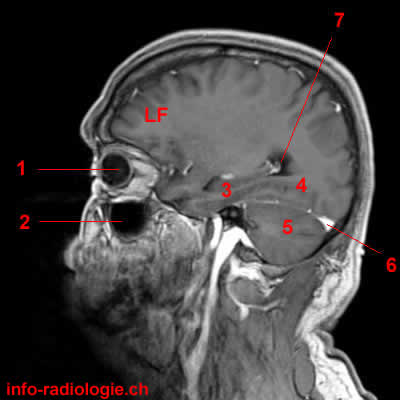

What is it |
LF, Frontale Lobe.
1, Globe.
2, Right maxillary sinus.
3, hippocampus
4, Occipito-temporal gyri.
5, Cerebellar hemisphere.
6, Transverse sinus.
7, Lateral ventricle.
|
What is it |
1, Amygdale.
2, Optic nerve.
3, Globe.
4, Inferior rectus muscle.
5, Right maxillary sinus.
6, Hippocampus.
7, Cerebellar hemisphere.
8, Transverse sinus.
9, Occipito-temporal gyri.
10, Lateral ventricle.
|

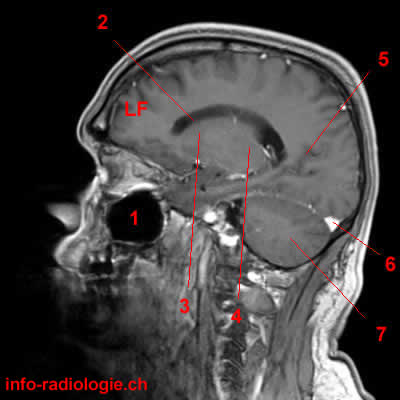

What is it |
1, Maxillary sinus.
2, Lateral ventricle.
3, Caudate nucleus.
4, Thalamus.
5, Parieto-occipital fissure.
6, Transverse sinus.
7, Cerebellar hemisphere.
LF, Frontal Lobe.
|
What is it |
1, Maxillary sinus.
2, Frontal sinus.
3, Lateral ventricle.
4, Parietooccipital fissure.
5, Calcarine fissure.
6, Transverse sinus.
7, Cerebellar hemisphere.
|

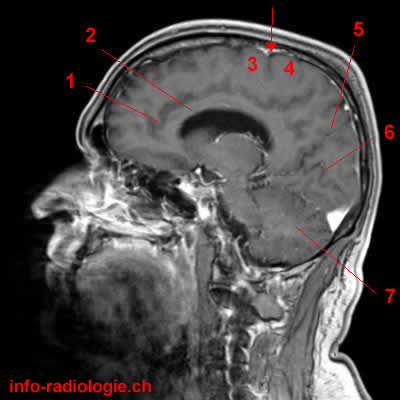

What is it |
1, Cingular gyrus.
2, Corpus callosum
3, Precentral Gyrus.
Arrow, Central sulcus.
4, Postcentral gyrus.
5, Parietooccipital fissure.
6, Calcarine fissure.
7, Cerebellar hemisphere.
|

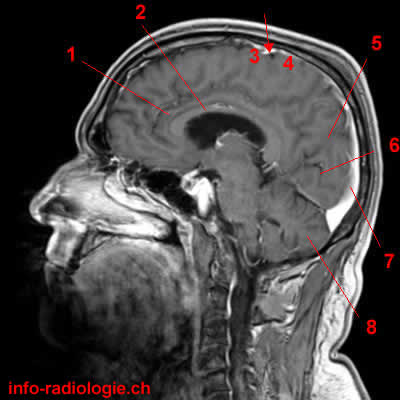

What is it |
1, Cingular gyrus.
2, Corpus callosum
3, Precentral Gyrus.
Arrow, Central sulcus.
4, Postcentral gyrus.
5, Parietooccipital fissure.
6, Calcarine fissure.
7, Superior sagittal sinus.
8, Cerebellar hemisphere.
|
What is it |
1, Sphenoid sinus.
2, Genu of corpus callosum.
3, Lateral ventricle.
4, Superior sagittal sinus.
5, Straight sinus.
6, IVth ventricle.
7, Cerebellomedullary cistern (cisterna magna).
|

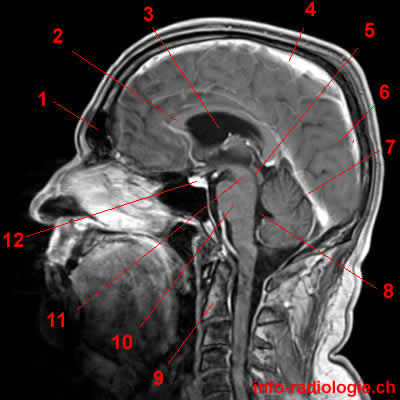

What is it |
1, Frontal sinus.
2, Genu of corpus callosum.
3, Lateral ventricle.
4, Superior sagittal sinus.
5, Acqueduct of midbrain.
6, Parietooccipital fissure .
7, Straight sinus.
8, IVth ventricle.
9, Odontoid process (C2).
10, Pons.
11, Mesencephalon.
12, Pituitary gland.
|

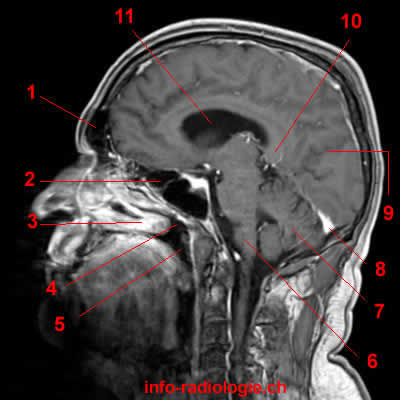

What is it |
1, Frontal sinus.
2, Sphenoid sinus.
3, Nasal turbinate.
4, Nasopharynx.
5, Oropharynx.
6, Medulla.
7, Cerebellar hemisphere.
8, Transverse sinus.
9, Parietooccipitale fissure.
10, Splenium of corpus callosum.
11, Lateral ventricle.
|

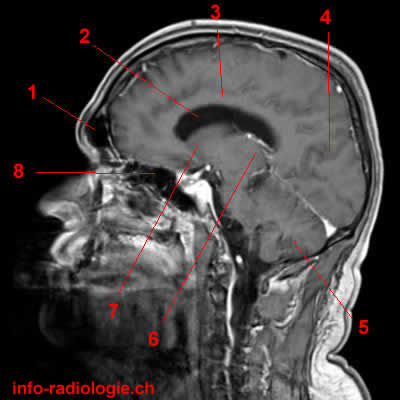

What is it |
1, Frontal sinus.
2, Lateral ventricle.
3, Corpus callosum.
4, Parietooccipitale fissure.
5, Cerebellar hemisphere.
6, Thalamus.
7, Caudate nucleus.
8, Sphenoid sinus.
|
