Front | Back |
Scattering (diffused radiation)
|
|
Short Wave Scattering
|
The shorter the wavelength, the greater the scattering,
The hotter the surface, the shorter the wavelengths are emitted |
Long Wave Scattering
|
The longer the wavelenght the lesser the scattering.
|

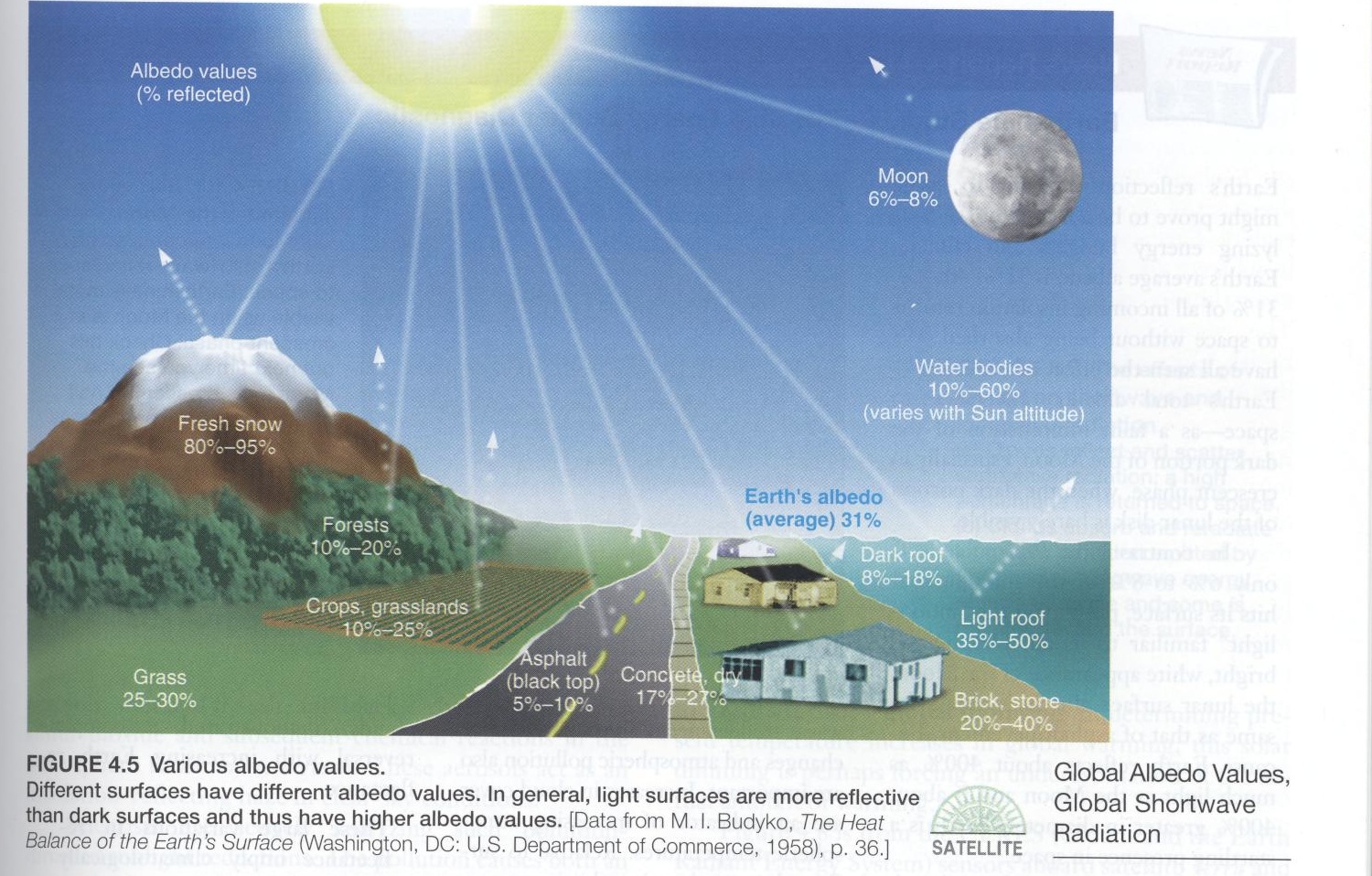

Albedo Percentages
|
Albedo Percentages: Light surfaces are more reflective than dark surfaces, thus lighter surfaces have higher albedo values |
Refraction
|
Shifts its direction, a bending action called refraction example: prism refracts light passing through it |
Albedo
|
The Albedo is the reflective quality or intrinsic (true, real) brightness of a surface. It is important control over the amount of insolation that is available for absorption by a surface.
|
Reflection
|
A portion of arriving energy bounces directly back into space without being absobred or performing any work--this is the reflection process.
|
Absorption
|
The assimilation of radiation by molecules of matter and its conversion from one form of energy to another
|
Conduction
|
The molecule-to-molecule transfer of heat energy as it diffuses thought a substance
As molecules warm, their vibration increases, causing collisions that produce motion in neighboring molecules, thus transferring heat from warmer to cooler materials |
Convection
|
Gasses and liquids also transfer energy by movements called convection, when the physical mixing involves a strong vertical motion
|
Advection
|
When horizontal motion dominates
|
Examples of Conduction
|
Temperature differences between land and water bodies Between darker and lighter surfaces,
|
Examples of Convection
|
Air mass movements and weather systems
Internal motions deep within Earth that produce a magnetic field |
Examples of Advection
|
Horizontal movement of winds from land to sea and back
horizontal transfer of heat by the wind |

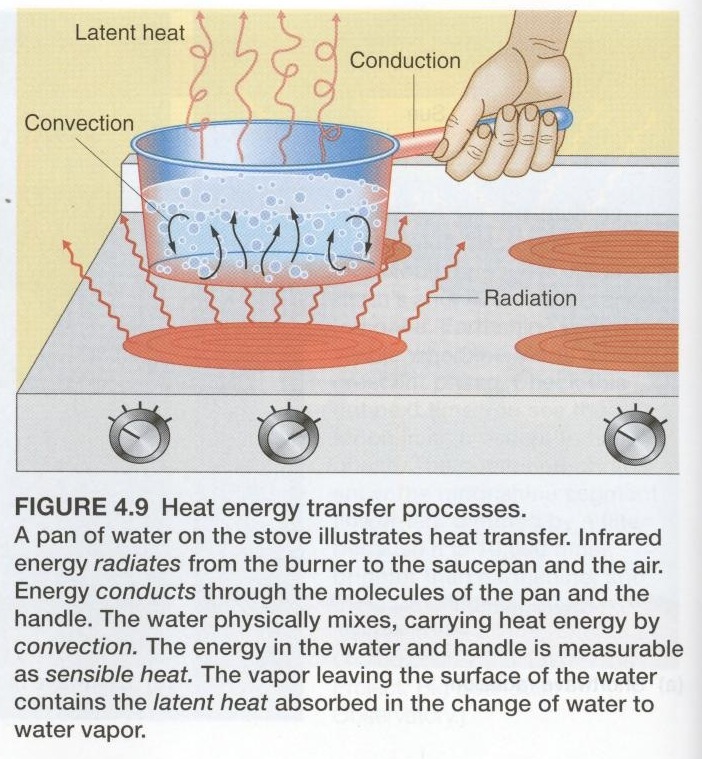

Heat energy transfer process:
|
A pan of water on the stove illustrates heat transfer |
