Front | Back |

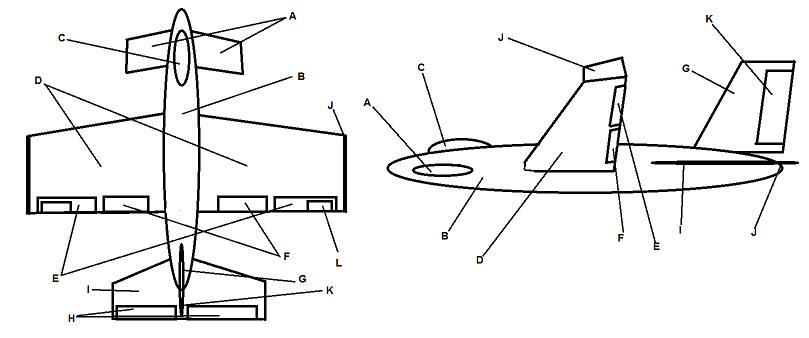

Identify B |
Fuselage
|
Identify A |
Canard
|
Identify D |
Wing
|
Identify C |
Cockpit
|
Identify F |

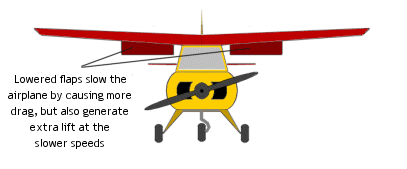

Flap, controls lift and drag |
Identify E |

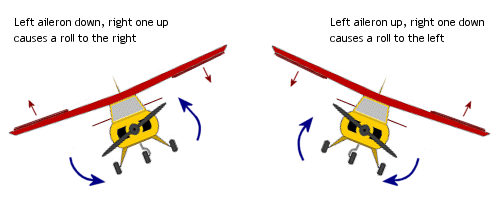

Aileron, which control the roll |
Identify J |
Winglet/wingtip, reduces the lag by altering airflow near the wingtips, and increase lift generated by wingtip
|
Identify G |
Vertical Stabilizer
|
Identify I |
Horizontal Stabilizer
|
Identify H |

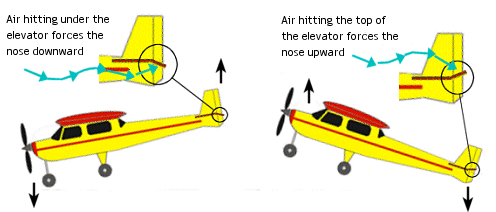

Elevators, which control the pitch |
Identify K |

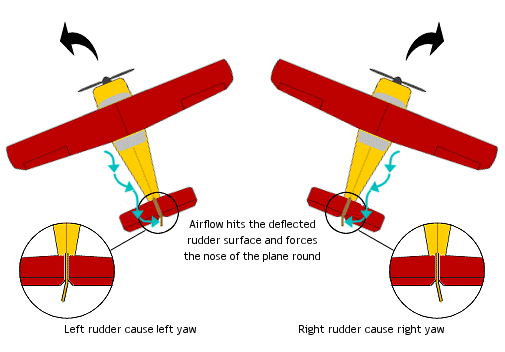

Rudder, which controls the yaw |
Identify L |
Trim tab
|
Based on the picture, which of the control surfaces is the primary surface for turning an airplane? |
E, Aileron, which is contolling the roll |
Based on the picture, which of the control surfaces is the primary control for altitude? |
H, Elevator |
The primary purpose of part J is to provide better control improve stability decrease drag |
Decrease drag
|
